USED AUTOMATIC EDGE BANDING MACHINE — MODEL CHA-802

AED 3,500

CTF Consoles

4 items live

Item Details

Condition

A bit of wear and tear, but in good working condition

Usage

Used an average amount, as frequently as would be expected

Posted on: 8th July 2026

Description

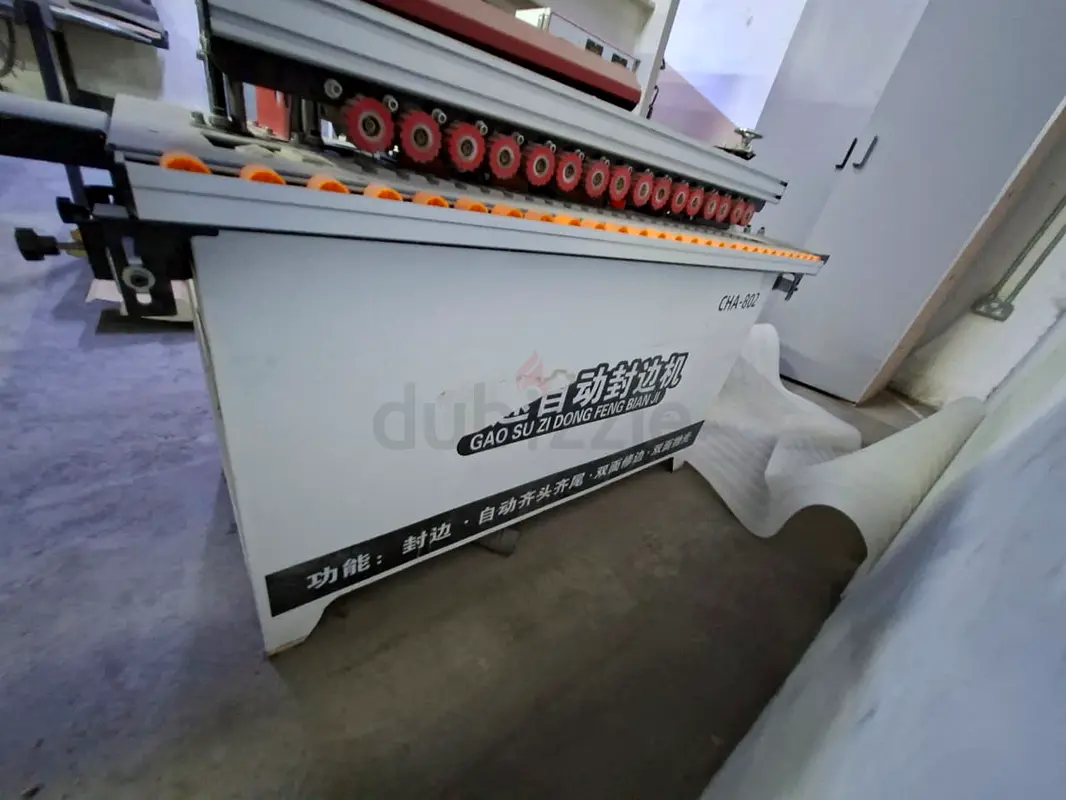

USED AUTOMATIC EDGE BANDING MACHINE — MODEL CHA-802
Type: Semi-automatic straight-line edge banding machine
Origin: China
Model: CHA-802
FUNCTION
Applies PVC/melamine edge banding tape to the cut edges of MDF, particleboard, and plywood panels. Commonly used in furniture, cabinet, and door manufacturing. The machine performs edge banding (glue + tape application), automatic end-trimming (flush-trims banding at both ends of the panel), and double-side trimming (trims top/bottom overhang for a clean finish).

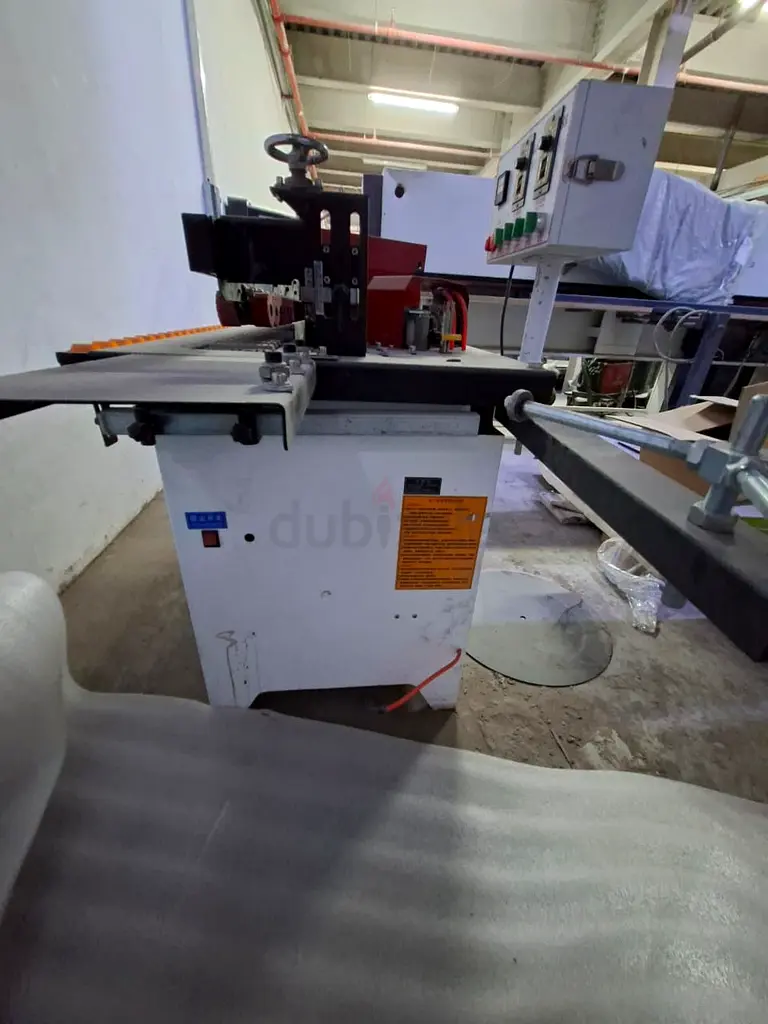

KEY FEATURES

Straight-line roller feed table (hand-fed), with pressure/feed rollers along the full working length
Glue pot and banding application unit with hand-crank height adjustment for panel thickness
Multiple in-line cutter/trim stations with rotary cutter wheels
Separate freestanding electrical control box with start/stop buttons, dual-zone temperature controllers (glue pot heating, adjustable, seen set around 55-60°C), and indicator lights
Rear support/discharge table
Compact single-sided design — panels are manually fed and flipped for each edge

SPECIFICATIONS (estimated, please verify on-site before finalizing)
Feed type: Manual, straight-line roller feed
Glue type: Hot melt (EVA), heated glue pot
Glue pot temperature range: approx. 0-200°C (working point seen around 55-60°C)
Banding thickness capacity: approx. 0.4-3 mm
Panel thickness capacity: approx. 10-50 mm
Feed speed: approx. 10-18 m/min
Power supply: 380V, 3-phase, 50Hz
Total installed power: approx. 2-3 kW
Condition: Used, functional
