1. Pipe Insulation Pipe insulation is a protective layer of material applied around pipes to reduce heat loss or gain, prevent condensation, protect personnel from hot surfaces, and improve energy efficiency. It is commonly used in HVAC systems, steam lines, chilled water systems, and industrial piping. Common Insulation Materials Fiberglass (Glass Wool): Lightweight, good thermal resistance, commonly used in HVAC and chilled water lines. Mineral Wool / Rock Wool: Higher temperature resistance, often used for steam and hot water pipes. Elastomeric Foam (Rubber Insulation): Flexible, closed-cell structure that prevents condensation, widely used for air-conditioning pipes. Polyurethane / Polyisocyanurate (PU/PIR): High thermal efficiency, used in refrigeration and cryogenic piping. Functions of Pipe Insulation Reduces energy loss and improves efficiency. Prevents condensation and moisture buildup. Maintains process temperature. Protects personnel from burns or cold surfaces. Reduces noise and vibration. Typical Components of a Pipe Insulation System Insulation material (pre-formed sections or sheets). Vapor barrier or aluminum foil facing. Adhesive or binding wire. Protective outer covering (such as canvas or metal cladding). 2. Insulation Canvas (Canvas Jacketing) Canvas in pipe insulation refers to a protective outer covering applied over the insulation material. It is usually made from treated cotton or synthetic fabric and coated with protective paint or mastic. Purpose of Canvas Covering Protects insulation from mechanical damage. Provides a smooth, clean finish for indoor piping. Holds insulation material firmly in place. Offers minor resistance to dust, moisture, and abrasion. Improves the appearance of insulated piping. Application Method Insulation is installed around the pipe. Canvas cloth is wrapped around the insulation. It is secured with adhesive, staples, or bands. Canvas is coated with insulation mastic or paint for sealing and durability. Typical Uses Mechanical rooms. HVAC piping systems. Indoor industrial piping installations.

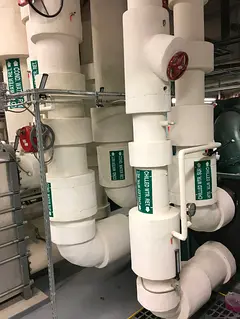

Pipe insulation and canvas clothing
