Description

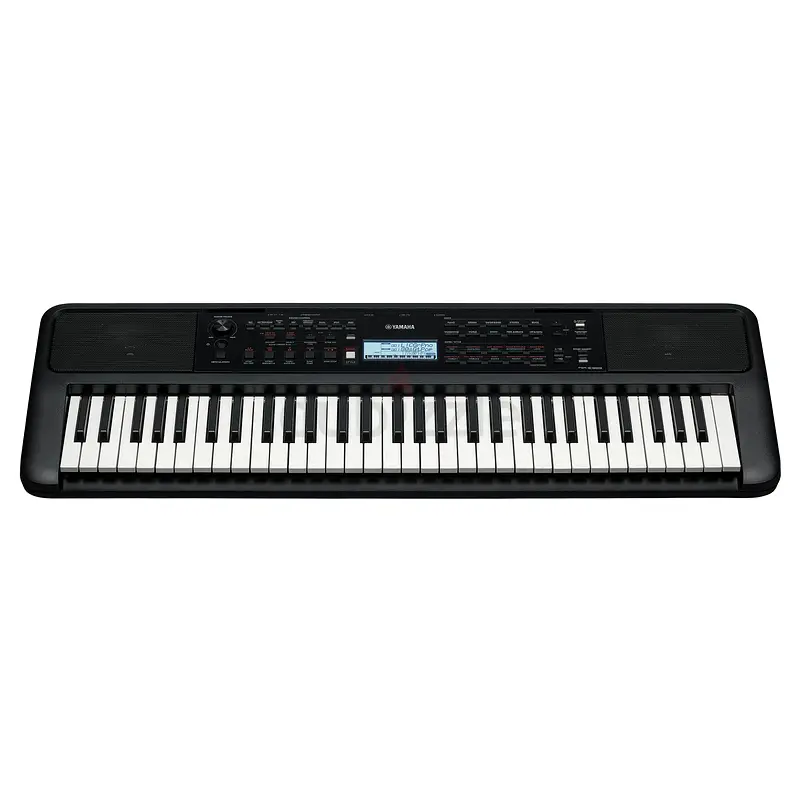

Yamaha - PSR-E383 - 61-key Portable Keyboard
61-key, standard model of Portable Keyboard for those who touch keyboard instrument for the first time, or even for players for performance usage. It is loaded with versatile functions, an expressive touch-sensitive keyboard action and many convenient functions so that even beginners can enjoy playing it right away.
650 high quality Voices, 260 auto accompaniment Styles
Touch-sensitive keyboard with 48-note polyphony
125 onboard Songs, easy Song Book (available via web download)
12 Super Articulation Lite Voices
Reverb, Chorus and 41 types of DSP effects
26 Harmony types
152 Arpeggio types
Brand new "Auto Chord Play" function for Style
"Keys to Success" with various lesson functions
Duo mode
USB Audio/MIDI Recording/Interface
Battery operation (AAx6)
Color/Finish - Cabinet
Color - Black
Size/Weight - Dimensions
Width - 941 mm (37-1/16”)
Height - 105 mm (4-1/8”)
Depth - 317 mm (12-1/2”)
Weight - Weight - 4.4 kg (9 lb, 11 oz) (not including batteries)
Control Interface - Keyboard
Number of Keys - 61
Type - Organ-style
Touch Response - Yes (Soft, Medium, Hard, Off)
Display Type - LCD
Backlight - Yes
Language - English
Voices
Tone Generation - Tone Generating Technology - AWM Stereo Sampling
Polyphony - Number of Polyphony (Max.) - 48
Preset - Number of Voices - 650 (258 Panel Voices + 25 Drum/SFX kits + 20 Arpeggio + 347 XGlite Voices)
Compatibility - GM - Yes
XGlite - Yes
Effects - Types
DSP - 41 types
Reverb - 15 types
Chorus - 7 types
Master EQ - 5 types
Harmony 26 types
Functions - Dual - Yes
Split - Yes
Arpeggio - 152 types
Melody Suppressor - Yes
Accompaniment Styles
Preset - Number of Preset Styles 260
Fingering - Smart Chord, Multi finger
Style Control - ACMP ON/OFF, SYNC START, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL
Other Features - Music Database - 200
One Touch Setting (OTS) - Yes
Auto Chord Play - 50 Chord Progressions
Expandability Expansion Style - 10
Songs
Preset - Number of Preset Songs - 125
Recording - Number of Songs - 5
Number of Tracks - 2
Data Capacity - Approx. 10,000 notes
Compatible Data Format
Playback SMF Formats 0 & 1
Recording - Original File Format
Functions
Lesson - KEYS TO SUCCESS, 3-Step Lesson (Listening, Timing, Waiting), A-B Repeat, Rhythm & Touch Tutor
USB audio interface - 44.1 kHz, 16 bit, stereo
Registration - Number of Memories - 10
Overall Controls - Metronome - Yes
Tempo Range 11 - 280
Transpose - -12 to 0, 0 to +12
Tuning - 427.0–440.0–453.0 Hz (approx. 0.2 Hz increments)
Duo - Yes
Miscellaneous - PIANO Button - Yes (Portable Grand Button)
Storage and Connectivity
Storage - Internal Memory - Approx. 1.4 MB
Connectivity - DC IN - 12 V
Headphones - Standard stereo phone jack (PHONES/OUTPUT)
Sustain Pedal - Yes
AUX IN - Yes (Stereo mini jack)
USB TO HOST - Yes (MIDI/AUDIO)
Amplifiers and Speakers - Amplifiers - 2.5 W + 2.5 W
Speakers - 12 cm × 2
Power Supply
Power Supply Adaptors - PA-130 or an equivalent recommended by Yamaha
Batteries - Six “AA” size alkaline (LR6), manganese (R6), or Ni-MH rechargeable batteries (HR6)
Power Consumption - 5 W (When using PA-130 AC adaptor)
Auto Power Off - Yes
Accessories - Included Accessories - Music Rest Yes
Song Book - Download from Yamaha web site
