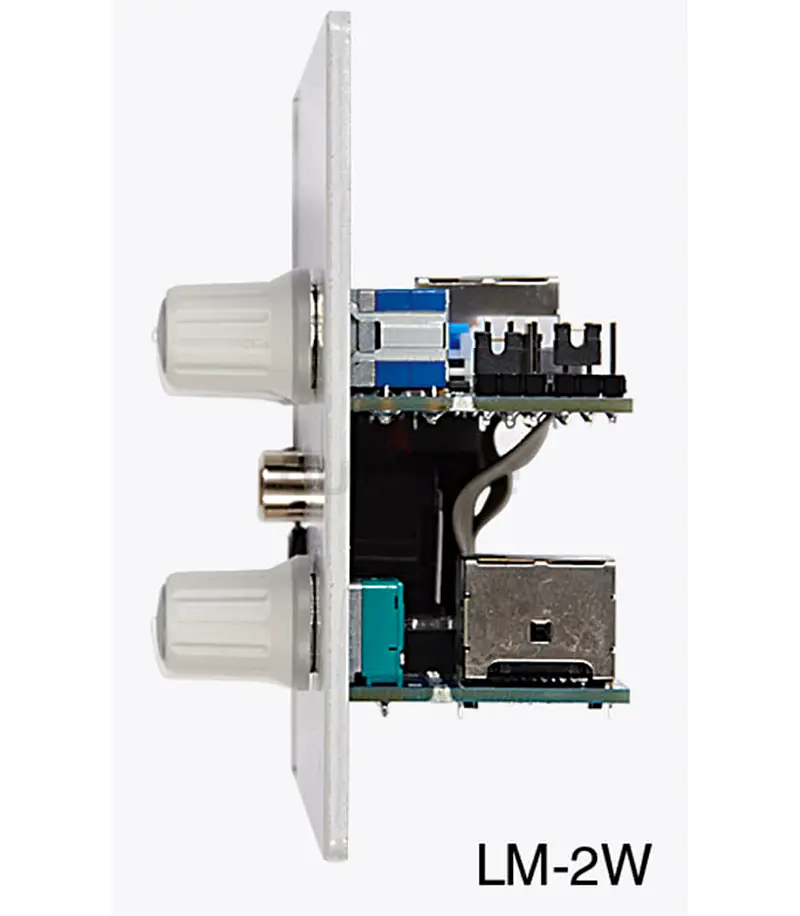

Cloud LM-2W Active Input Plate with 1 Stereo Line Input - Brand New

AED 740

BAvix

5.0

909 items live

Item Details

Age

Brand New

Condition

Perfect inside and out

Usage

Still in original packaging

Posted on: 5th September 2026

Description

Mic Input 3-pin XLR3F connector for dynamic microphones. LM-2 does not provide phantom power
Line Input (a) 2 x phono (RCA) sockets for line level signals with a nominal level of 0 dBu.
Line Input (b) 3-pole 3.5 mm jack socket for line level signals with a nominal level of +8 dBu.A source plugged into this input will be summed to mono and mixed with any source connected to the phono inputs 2. NOTE- Both stereo line inputs are summed int
Mic Level Gain control for mic input. Up to 60 dB gain is available; with the control fully anti-clockwise, the input is effectively ‘off’.
Music Level Gain control for whichever line input ( 2 or 3 ) is in use. With the control fully anticlockwise, the source will be ‘off’; in the fully clockwise position, 10 dB of gain is provided.
Mic Priority Default setting gives the microphone input priority over both the module’s line input and the background music selected at the host unit. This operation can be modified by jumpers on the rear PCBs
Background Music Source Six-position switch to select which of the host unit’s six Line Inputs will be routed to the Zone to whose Facility Port the LM-2 is connected (usually the Zone where the LM-2 is installed).
Background Music Level Adjusts the background music level in the Zone
