Behringer WING 48-channel Digital Mixer - Black

AED 9,800

Sound Master Electronics

5.0

11 items live

Item Details

Age

Brand New

Condition

Perfect inside and out

Usage

Still in original packaging

Posted on: 20th April 2026

Description

Features:

48-stereo-channel digital mixer with 40 stereo input processing channels, as well as 8 stereo aux channels
28 stereo buses — 16 stereo aux buses, 8 stereo matrixes, and 4 stereo mains
24 smooth-feeling motorized 100mm faders in 3 separate, configurable sections
10.1” capacitive touchscreen, adjustable display wheel, and rotary controls provide touch-sensitive channel editing
8 MIDAS Pro mic preamps and MIDAS outputs ensure that you capture high-quality sound
3 AES50 ports provide plug-and-play remote I/O connectivity for up to 144 input and output signals
AES50 networks are compatible with MIDAS M32 and Behringer X32 mixers
32-channel StageCONNECT interface for personal monitoring or analog I/O boxes
Includes AES/EBU stereo digital I/O, 2 headphone connectors, MIDI I/O, and 4 GPIO ports
Compatible with Behringer and MIDAS digital snakes, including the S16, S32, SD8, SD16, DL16, and DL32
WING-LIVE card captures up to 64 channels of 32-bit/48kHz audio to a pair of SD or SDHC cards
Optional expansion cards supply Dante support
Built-in 48-in/48-out USB audio interface with HUI and Mackie Control DAW remote functionality
Sources put the emphasis on your source audio rather than on your inputs and channels
Apply names, icons, and colors to each Source for at-a-glance identification
Each channel can be either mono, stereo, or mid-side — no channel linking required
16 true-stereo processors with effects from Pultec, SSL, SPL, Neve, Focusrite, dbx, Universal Audio, Elysia, and Empirical Labs
Auto Pilot supplies fast and dependable automixing with 2 groups of gain sharing
Dual solo/monitor buses per channel for monitoring over phones/IEM and/or floor wedges
Support for binary and OSC communication for remote operation
WING Co-Pilot tablet app enables you to label or set parameters while patching from the stage
Specification:
Type:Digital Mixer
Channels:48 Stereo (40 x channel, 8 x aux)

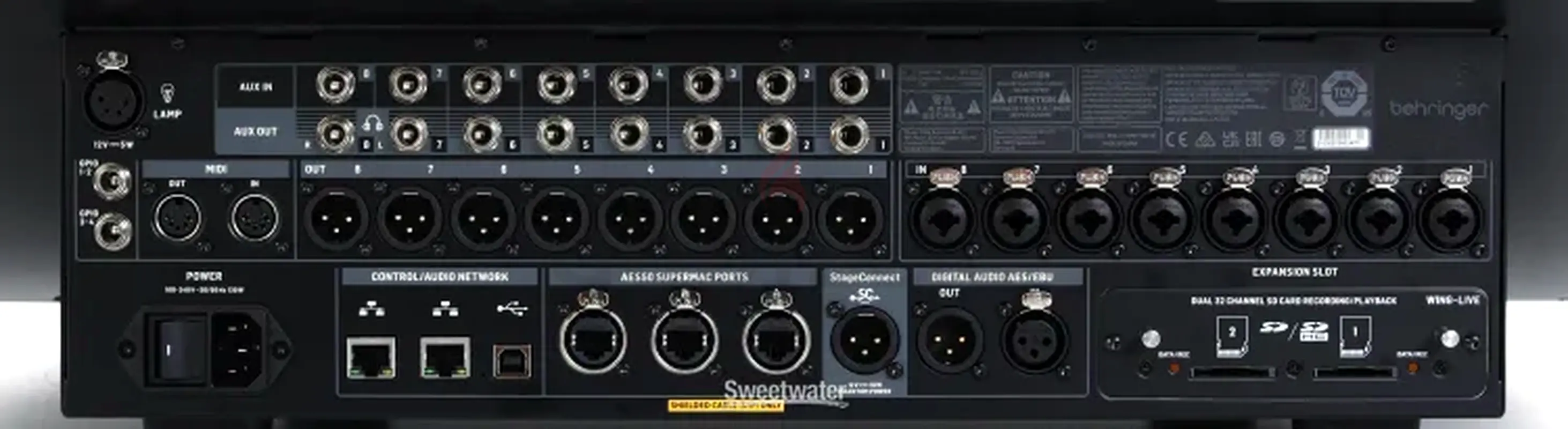

Inputs - Mic Preamps:8 x XLR-1/4" combo (mic/line)
Phantom Power:Yes
Outputs - Main:8 x XLR
Inputs - Digital:1 x XLR (AES/EBU), 3 x EtherCON (AES50 SuperMAC), 1 x XLR (StageCONNECT)
Outputs - Digital:1 x XLR (AES/EBU), 3 x EtherCON (AES50 SuperMAC), 1 x XLR (StageCONNECT)
Send/Return I/O:8 x 1/4" TRS (aux in), 8 x 1/4" TRS (aux out)
Busses/Groups:8 x Stereo Matrix, 4 x Stereo Mains, 16 x Aux Stereo Bus
Inserts:Dual Inserts per Bus, FX Insert Slot
MIDI I/O:In/Out
Data I/O:2 x Ethernet (control/audio network)
Headphones:2 x 1/4"
USB:1 x Type B, 1 x Type A
Computer Connectivity:USB 2.0, 24-bit/48kHz (48 x 48)
Remote:1 x 1/4" (GPIO 1-2), 1 x 1/4" (GPIO 3-4)
I/O Expansion Slots:1 x Expansion Port (24-bit/48kHz)
Faders:24 x 100mm Motorized
A/D Resolution:Up to 24-bit/192kHz
EQ Bands:6-band Parametric EQ (channel), 8-band Parametric EQ (bus), Additional EQs and Configurations
Effects:8 x Premium FX Stereo Processors, 8 x Standard FX Stereo Processors, 5 x Variable Plug-in Slots
Signal Processing:Full Dynamics Processing
DAW Control:Yes (HUI, Mackie)
Screen:10" Capacitive Touchscreen, Adjustable Swivel
Storage:2 x SD Card Slot (dual 32 track max)
Power Source:Standard IEC AC cable
Height:7.9"
Depth:22.6"
Width:34.3"
Weight:52.8 lbs.
