Description

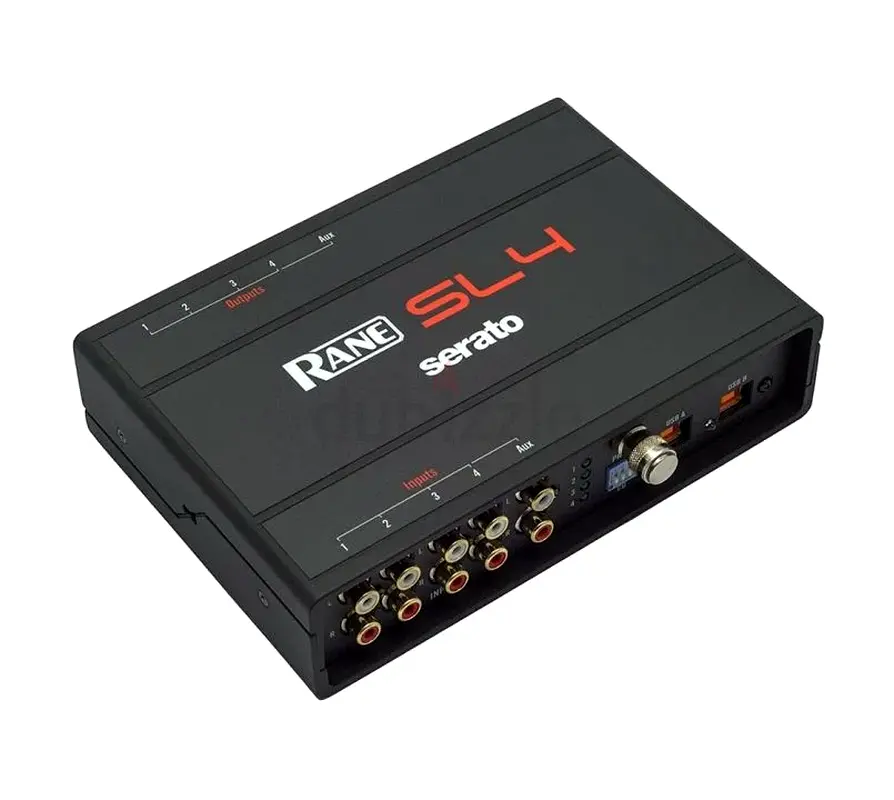

Rane DJ SL4 Audio Interface
Specification.
USB Audio
Interface:
USB 2.0 High Speed
Power Requirements:
500mA, 5.0 Volts
Audio Channels:
Ten Record and Ten Playback
External Power Supply
1060 mA, 7.5 Volts
Converters
24-bit / 48 kHz or 96 kHz sample rate switchable
DACs
Dynamic Range:
104.5 dB, A-weighted
ADCs
Dynamic Range:
103 dB, A-weighted
Dynamic Range
101 dB A-weighted analog in to analog out
Frequency Response
-0.6 dB @ 20 Hz, -0.03 dB @ 20 kHz
THD+N
0.007% at 1 kHz, 20 Hz to 20 kHz BW
Analog Inputs
Inputs 1-4 individually Phono / Line switchable
Gain:
Unity
Maximum Input / Output:
3 Vrms @ 1 kHz
Switched Phono Input Max
70 mV rms @ 1 kHz
Unit Size
7.25˝ x 5˝ x 1.7˝ (18.4 x 12.6 x 4.3 cm)
Shipping Size
14˝ x 14˝ x 4˝ (36 x 36 x 10 cm)
Weight:
6 pounds (3 kg)
