Description
KEY FEATURES
Tripod LED lighting solution with 4 spotlights and foot controller
Ideal for portable live performance, events, DJ shows and fixed installations
Each spotlight houses 7 x 3-Watt ultra-bright RGB 3-in-1 LEDs
System can be operated via DMX console, master/slave, integrated display, foot controller or IRC1 remote control (not included)
Standalone operation with 24 programmed automated show and color macros
Onboard sound-to-light mic module for creating light show automatically from music beat
Foot controller included for sound-to-light and standalone modes
Power link allows daisy chaining between units, saving time and the need for additional extension cords
Tripod stand with a max height of 8 ft (2.4 m) with 48" (120 cm) lamp mounting bar included
Tight 40° beam angle
System and stand transport bag included
DESCRIPTION

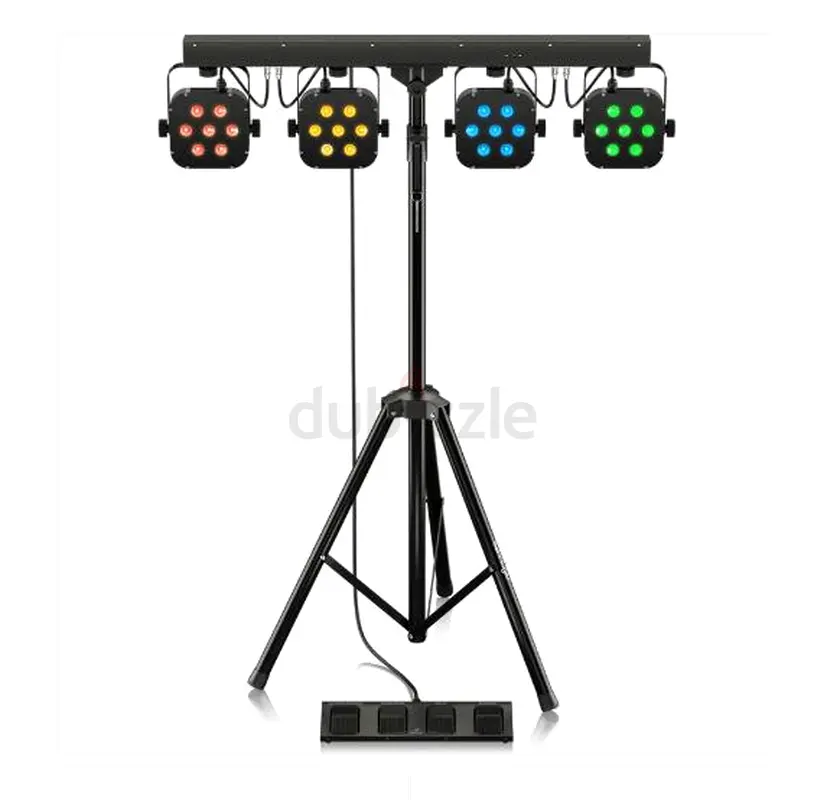

The EUROLIGHT STAGE TRI LED BUNDLE ST1 is an all-in-one portable lighting system designed to easily set up colored lighting displays for stages, parties, special gigs, clubs, bars and more. The ST1 system comes with four flat PAR lights pre-mounted on a single bar, tripod stand with bag, four-pedal footswitch and carrying case, all of which make mobility and set up extremely fast and easy.
Each PAR features seven powerful RGB 3-in-1 LEDs for outstanding color mixing. The bar has two power outputs at both extremities and multiple embedded hanging points to maximize set up possibilities and configuration.
ST1 can be operated through multiple control options including onboard four-button control panel with LED display, four-pedal footswitch, DMX and optional IRC1 remote control.
You can choose between five different modes of operation: Auto, Static Color, DMX 512, Sound Control or Master/Slave mode.
SPECIFICATIONS
Light source
4 x LED 7 x 3W 3 in 1
Beam Angle
40˚
Channles
1CH, 2CH, 3CH, 5CH, 8CH1, 8CH2, 16CH
Control mode
DMX
Master-Slave
Integrated Display
Sound active
Foot Controller
IR Control
Display
7 segment LED
Voltage
AC100-240V, 50/60 Hz
Power consumption
89W
Power cord daisy chain
Maximum 5 units @110 V, 10 units @220 V
Dimensions (H x W x D)
1119 x 285 x 68 mm
Net weight
12.4 kg
Supplied Items
Stage Tri LED ST1
Manual
Tripod stand with bag T-bar
IEC Power cable
Carrying case
Foot control
Optional Items
Safety cable
DMX signal cable
IRC1 Remote control
Mounting Brackets
