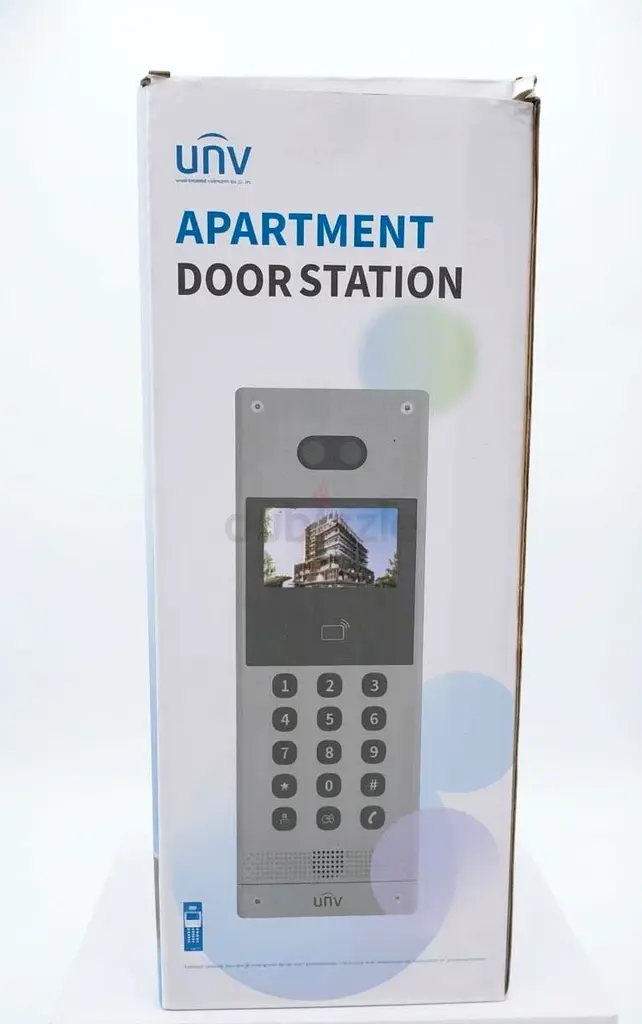

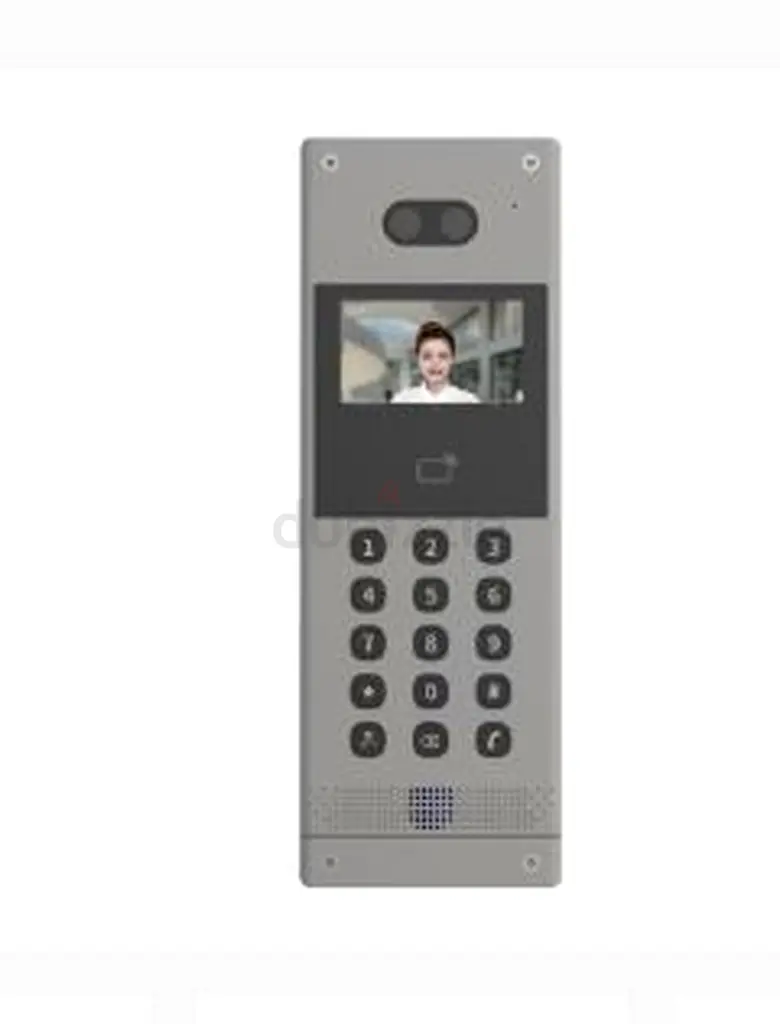

Uniview Apartment Door Station(IC Card,15 Keypads) - Brand New

AED 1,299

BAvix

4.8

1092 items live

Item Details

Age

Brand New

Condition

Perfect inside and out

Usage

Still in original packaging

Posted on: 29th September 2026

Description

• Supports call and intercom with the connected indoor stations and Guard Live.
• Standard recess mount bracket for recess mount.
• Built-in heating module supports operation at a very low temperature.
• Supports controlling two doors.
• Supports braille keypads.
• Front metal casing.
• Supports configuration in batches.
• Supports security protection alarm and tamper alarm triggered by door magnet, infrared, etc.
• Built-in IC card reader.
• Supports connecting a door control security module via a private RS485 interface to prevent the door from being opened in the event of malicious damage to the device.
• Adopts Uniview's proprietary deep learning algorithm model, with the smart recognition rate exceeding 99%, false recognition rate below 1%, and maximum recognition speed of 0.2 seconds.
• 2MP low illumination, high definition, star light image sensor.
• Supports auto illumination.

Basic BusinessPerson capacity15,000WDRSupportProtocolPrivate protocolButton15 buttons (with LED backlight), with braille in rows 1-4
Keypad layout:
Row 1: 1/2/3
Row 2: 4/5/6
Row 3: 7/8/9
Row 4: */0/#
Row 5: Management center/cancel/call
Communication Mode100Mbps network interfaceNetwork protocolTCP/IP, IPv4, HTTP, RTP, RTSP, NTPSpecification IndexEvent Capacity100,000Card Capacity15,000Hardware SpecificationFOVHorizontal: 106.9°
Vertical: 56.9°
Diagonal: 127.9°
Power Consumption9WVolume AdjustmentSupportAudio QualityNoise reduction, echo cancellation, auto gain controlAudio InputBuilt-in micAudio OutputBuilt-in speakerAudio Compression StandardPCM, G711, MP3Audio Compression Bitrate128KbpsPower SupplyDC12V ±25% (VDD12V/GND)、IEEE802.3af PoE power supplyIngress protectionIP65 (apply waterproof glue to the gap between the device and the wall)
IK08 (except lens, keypads, and display screen)
Operating SystemLinuxIlluminatorIR illuminatorScreen Resolution800*480Screen Size3.97 inchWeight912gMount MethodWall mount, supports exposed installation and recess installationInterfacePower supply*1, network interface*1, RS485*1, Wiegand interface*1 (supports input or output mode), door lock interface*2, IO input*4, IO output*2, door opening button*2, door magnet*2, tamper button*1Dimensions (L x W x H)125.0mm x 52.5mmx 358.0mmOperating Environment- 40°C to 60°C, 10% to 90% noncondensing, outdoor
