Description

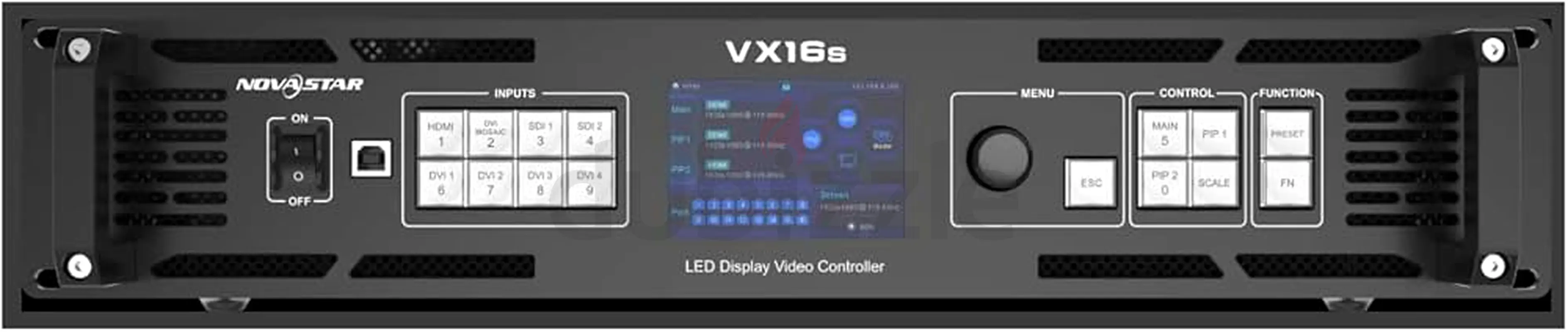

Novastar vx16s

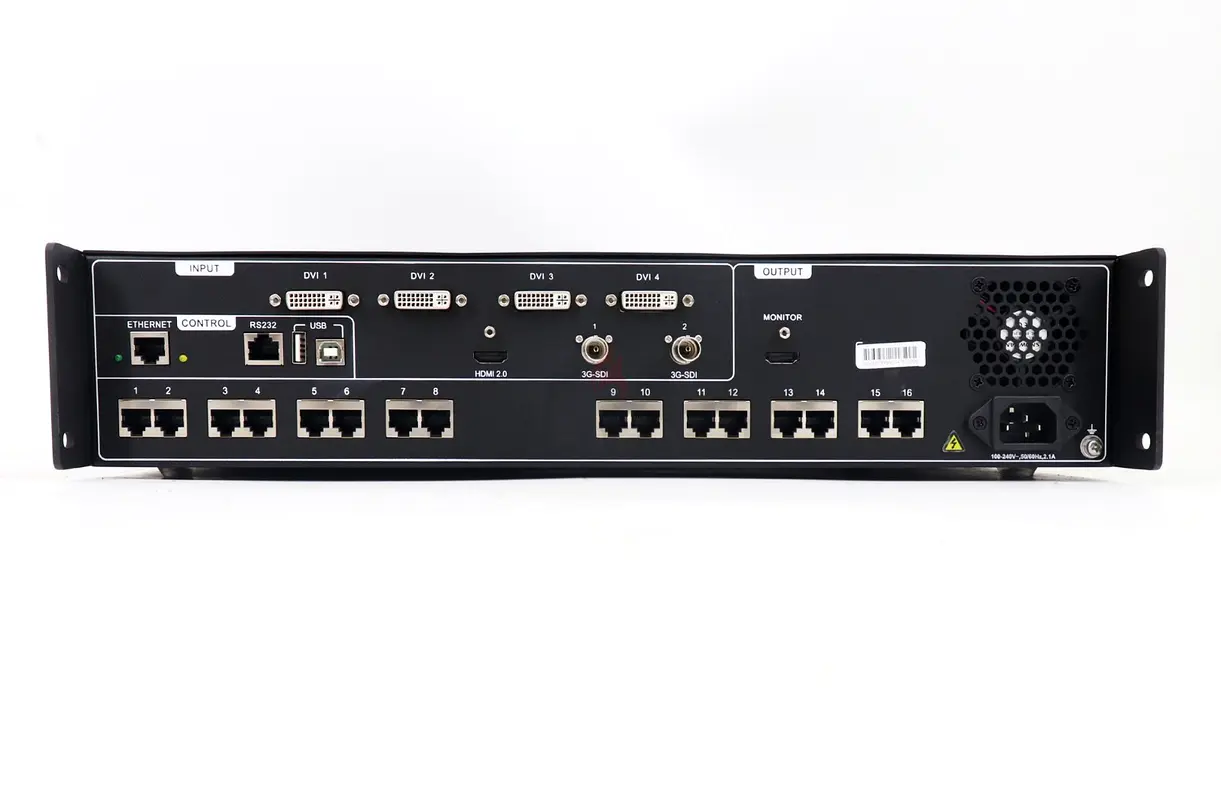

Industry-standard input connectors
− 2x 3G-SDI
− 1x HDMI 2.0
− 4x SL-DVI
16 Ethernet output ports load up to 10,400,000 pixels.
3 independent layers
− 1x 4K×2K main layer 2x 2K×1K PIPs (PIP 1 and PIP 2)
− Adjustable layer priorities
DVI mosaic
Up to 4 DVI inputs can form an independent input source, which is DVI Mosaic.
Decimal frame rate supported
Supported frame rates: 23.98 Hz, 29.97 Hz,47.95 Hz, 59.94 Hz, 71.93 Hz and 119.88 Hz.
3D
Supports 3D display effect on the LED screen.The device output capacity will be halved after the 3D function is enabled.
Personalized image scaling
Three scaling options are pixel-to-pixel, full screen and custom scaling.
Image mosaic
Up to 4 devices can be linked to load a super large screen when used together with the video distributor.
Easy device operation and control through VCan
Up to 10 presets can be saved for future use.
EDID management
Custom EDID and standard EDID supported
Device backup design
In backup mode, when the signal is lost or the Ethernet port fails on the primary device, the backup device will take over the task automatically.
