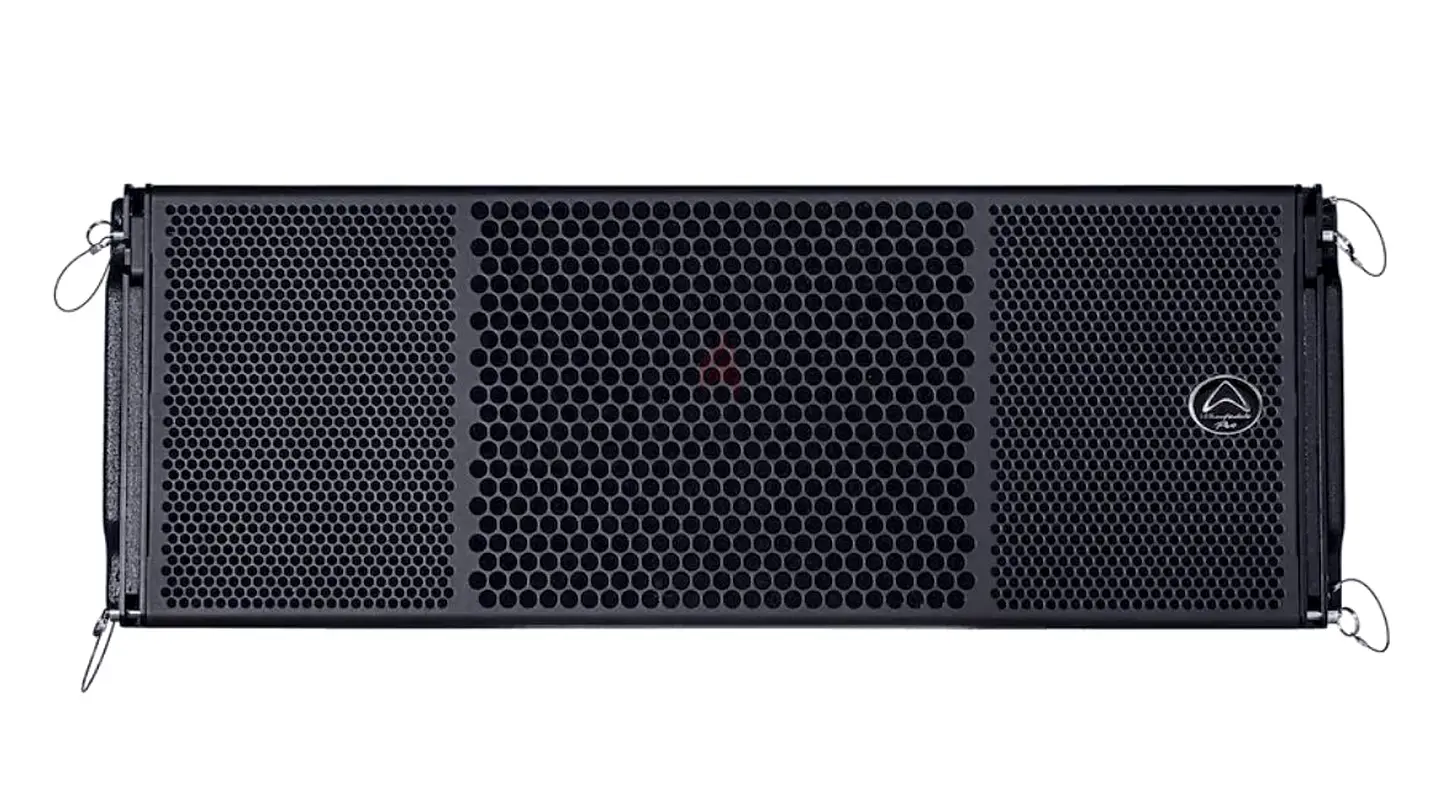

Wharfedale Pro WLA312X Line Array Speaker Passive 3-Way 2x12" 1410W RMS, 16Ω imp - Brand New

Name: Wharfedale Pro WLA312X Line Array Speaker Passive 3-Way 2x12" 1410W RMS, 16Ω imp - Brand New
Brand: Others
Price: 4995 AED
Availability: InStock

AED 4,995

BAvix

5.0

914 items live

Item Details

Brand

Others

Age

Brand New

Condition

Perfect inside and out

Warranty

Yes

Usage

Still in original packaging

Model name

WLA312X

Connectivity Technology

Wired

Features

Dolby Enabled

Posted on: 3rd September 2026

Description

KEY FEATURES

THREE-WAY LINE ARRAY ELEMENT
2 X 12” LF DRIVERS
1 X 10” NEO MIDRANGE DRIVER
2 X 2.55” NEO HF COMPRESSION DRIVERS
BIRCH PLYWOOD CONSTRUCTION
1410 WATTS AES (RMS)
2820 WATTS PROGRAMME
5640 WATTS PEAK
16 OHMS IMPEDANCE
FLY FRAME TO SUPPORT UP TO 12 ELEMENTS (900 KG)

DESCRIPTION

WLA-312X is an advanced three-way line array speaker system capable of handling vast amounts of power – while remaining sonically clear, precise and accurate. Rated at 1410 W AES (RMS) per cabinet and boasting highly efficient custom Wharfedale Pro drivers, the WLA-312X can deliver an astonishing 138 dB Max SPL @ 1 meter.

Custom WP drivers have been selected to ensure that this series not only has the power you would expect, but the three-way configuration brings a new sonic dimension and definition.

With dual 12” woofers, a single 10” midrange driver and dual 2.55” compression drivers, the WLA-312X has everything needed for large venue coverage. In addition, there is no need to fly subwoofers within the array – the WLA-312X has already got plenty of low-end punch.

The WLA-312X is designed to be controlled and tuned with either a Wharfedale Pro Versadrive signal processor or a DP-D series amplifier. Either of these DSP systems deliver full signal routing and processing to maximise the power and sonic effect of the WLA-312X array.

SPECIFICATIONS

Specification Value
SYSTEM TYPE Passive
CONFIGURATION Three-way
FREQUENCY RESPONSE (+/-3 DB) 50-18 KHz
FREQUENCY RANGE (-10 DB) 40-20 KHz
Low Frequency Transducer

SENSITIVITY (2.83V / 1 METER) HF: 114 dB / MF: 105 dB / LF: 102 dB
CALCULATED MAXIMUM SPL @ 1 METER HF: 142 dB / MF: 136 dB / LF: 138 dB
SIZE (MM / INCHES) 313 mm / 12”
VOICE COIL SIZE (MM / INCHES) 75.5 mm / 3”
LF MAGNET MATERIAL Ferrite
LF FRAME MATERIAL Aluminium
RATED IMPEDANCE 2 x 8 Ω
LF POWER (AES2-2012) 2 x 450 W
Mid Frequency Transducer

SIZE (MM / INCHES) 260 mm / 10”
VOICE COIL SIZE (MM / INCHES) 65 mm / 2.55”
MF MAGNET MATERIAL NdFeB
MF FRAME MATERIAL Aluminium
RATED IMPEDANCE 16 Ω
MF POWER (AES2-2012) 350 W
High Frequency Transducer

HF DRIVER TYPE Compression Driver
COIL SIZE (MM / INCHES) 65 mm / 2.55”
EXIT SIZE (MM / INCHES) 1.4″
HF MAGNET MATERIAL NdFeB
DIAPHRAGM MATERIAL Titanium
RATED IMPEDANCE 16 Ω (2 x 8 Ω)
HF POWER (AES2-2012) 160 W (2 x 80 W)
WAVEGUIDE TYPE Square
NOMINAL COVERAGE (H X V) 90H x 7.5V
NOMINAL IMPEDANCE 16 Ω
Power Ratings

SYSTEM POWER AES (RMS) HF: 160 W / MF: 350 W / LF: 900 W
SYSTEM PROGRAMME POWER HF: 320 W / MF: 700 W / LF: 1800 W
SYSTEM PEAK POWER HF: 640 W / MF: 1400 W / LF: 3600 W
CROSSOVER FREQUENCY 160 Hz / 1.2 KHz
Connections & Rigging

INPUT CONNECTOR 2 x Neutrik NL8MPR
RIGGING 3 points for rigging
POLE MOUNT No
HANDLES Yes
Enclosure

CABINET TYPE Trapezoid
ENCLOSURE MATERIAL & FINISH 15 mm, 18 mm plywood
COLOUR OPTIONS Black paint
GRILLE MATERIAL & FINISH Steel
