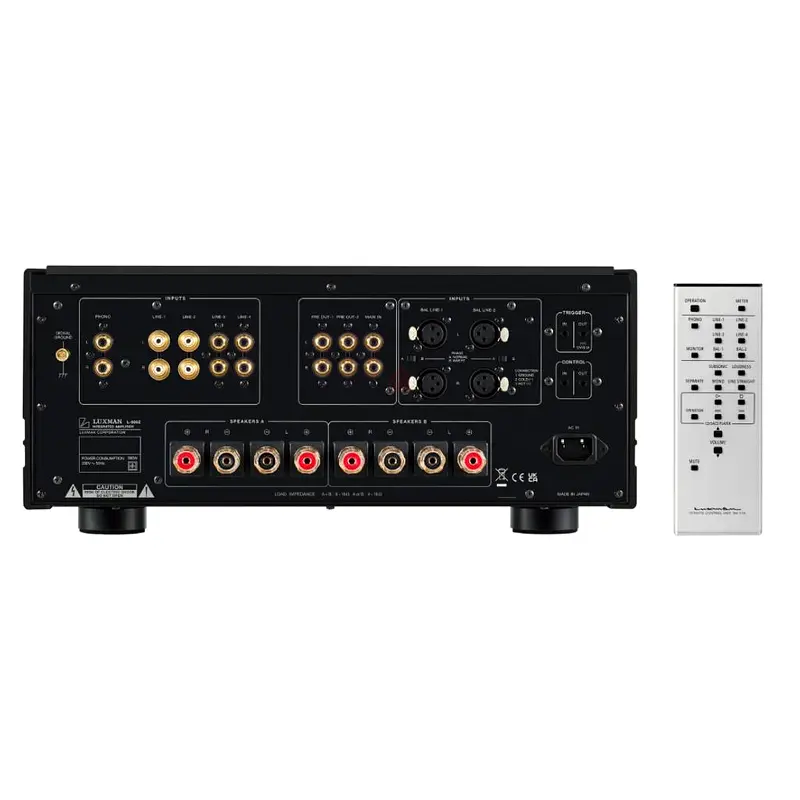

Luxman L-509Z Integrated Amplifier – CENTENNIAL 100th Anniversary Limited Edition

AED 35,000

Dubai

5.0

21 items live

Item Details

Age

1-2 years

Warranty

No

Condition

Perfect inside and out

Usage

Out of original packaging, but only used once

Posted on: 13th April 2026

Description

Introducing our next-level “single-chassis separates” concept,pursuing the ideal with a new, all-in-one flagship amplifier.Taking our Z-Series integrated amplifiers to a performance peak. As the premium model for the new Z-Series generation, the L-509Z has evolved beyond the concept of a traditional integrated amplifier. Both the preamplifier and power amplifier sections simultaneously use our new generation amplification feedback engine “LIFES” for the first time. The volume control is supported by our new “LECUA-EX” attenuator system that suppresses sound quality deterioration and realizes a more precise feel of operation. The “single-chassis separates” concept, which aims for the ultimate in integrated amplifiers, now achieves unprecedented performance. Pursuing the ideals of audio enthusiasm, we are combining our passion for music with improved technology. The L-509Z, a new pinacle of LUXMAN integrated amplifier design.

– Our latest amplification feedback engine literally brings music to life with LIFES* Version 1.0
– Electronically controlled attenuator LECUA-EX* incorporating an elaborate rotation mechanism
– Highly regulated power supply
– High-quality phono EQ
– 3-band tone control
– Original technology, special attention
– Low-impedance transmission
– High-quality hairline finish top panel
– Large needle-movement VU level meter and 7-segment LED
– Headphones outputs with ground isolation
– High quality input/output terminals
– Ergonomic aluminum remote control

Rated output 120W + 120W (8Ω) 220W + 220W (4Ω) Input sensitivity/input impedance PHONO (MM): 2.5mV/47kΩ PHONO (MC-H): 0.3mV/100Ω PHONO (MC-L): 0.1mV/40Ω LINE: 180mV/47kΩ BAL.LINE: 180mV/79kΩ MAIN IN: 1.1V/47kΩ Output voltage PRE OUT: 1V Frequency response PHONO: 20Hz to 20kHz (±0.5dB) LINE: 20Hz to 100kHz (within -3dB) Total harmonic distortion 0.007% or less (8Ω, 1kHz) 0.03% or less (8Ω, 20Hz to 20kHz) S/N ratio (IHF-A) PHONO (MM): 87dB or more PHONO (MC-H): 70dB or more PHONO (MC-L): 62dB or more LINE: 106dB or more Volume adjustment LECUA-EX Amplification feedback circuit LIFES 1.0 Output configuration Bipolar 4-parallel push-pull Damping factor 330 Max. amount of tone control BASS: ±8dB at 100Hz TREBLE: ±8dB at 760Hz TREBLE: ±8dB at 10kHz Power supply 230V~(50Hz) / 115V~(60Hz) Power consumption 390W 150W (under no signal), 0.5W (at standby) External dimensions 440(W) x 193(H) x 463(D) mm front side knob of 20mm and rear side terminal of 37mm included in depth Net weight 29.4kg (main unit) Accessories Remote control (RA-17A) Power cable Speaker terminal Supported Y-lug terminal dimension Width of part a: 16mm or less Width of part b: 7mm or more * Connection may not be performed depending on the shape of the Y-lug terminal.

- Model: Luxman L-509Z Integrated Amplifier – CENTENNIAL 100th Anniversary Limited Edition
- Age: 1-2 years
- Condition: Flawless
- Usage: Used Once
- Warranty: No
- Category: Electronics / Amplifiers
- Color: Black
