Description
Two competition full balanced amplifiers in perfect working condition, looks near mint.
Zapco C2K-2.0X Hi-End Competition 2/1 channel amp.
Made in USA.
Rated power output RMS:
Stereo, 4 ohms: 2x50 Watts
Stereo, 2 ohms: 2x100 Watts
Stereo, 1 ohms: 2x200 Watts
Bridged, 4 ohms: 1x200 Watts
Bridged, 2 ohms: 1x400 Watts
T.H.D. + Noise: 0.02%
Frequency Response: 20Hz - 20kHz; +0 dB/-0.35 dB
S/N Ratio: 100dB
Transient Distortion: 0.01%
Slew Rate: 26V/uS
Damping Factor: 900
Input Sensitivity: 1-4 Volts or 4-16 Volts

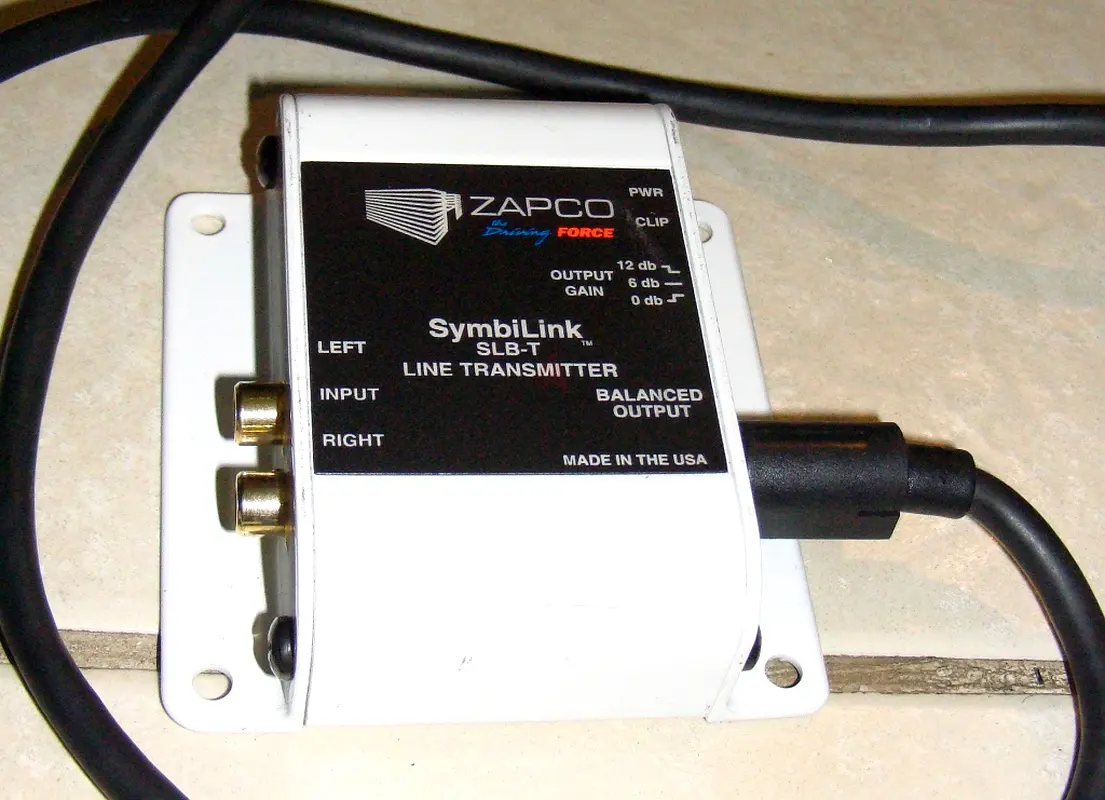

SymbiLink™ Balanced Technology provides up to 16 volts of balanced input for the cleanest, quietest signal possible.
Zapco C2K-2.5X Hi-End Competition 4 channel amp.
Made in USA.
2/4-Channel Amplifier with Dual Crossover and Pass Through Output
SymbiLink Balanced Technology provides up to 16 volts of balanced input for the cleanest, quietest signal possible
Pre-clip and output clip indicators to maximize performance settings
Symmetrical, discrete power amplifier circuitry
Fuse, short circuit, high temperature, DC offset, and over voltage protection
25-amp High Current Bi-Polar output devices
50-amp MOSFET switching devices
Optically isolated power supply
Gate Drive Boost maximizes power supply efficiency and improves overall performance
Very high damping for excellent speaker control
Surface Mount Technology w/1% resistors, precision capacitors, and massive ground planes
Four layer PC board with heavy 2 oz copper
Dual variable electronic crossovers
Pass-through output
Sub-sonic filter for speaker protection
Dual cooling fans allow any mounting position
Rated power RMS per channel
Stereo 75 watts x 4 @ 4Ω
Mono 230 watts x 2 @ 4Ω
Frequency Response - 20Hz - 20kHz +0db -0.33db
Transient Distortion-@ 1 kHz 0.015%
Slew Rate - 34 V/uS
Damping Factor 700 @ 4Ω
Input Sensitivity- 1-4 volts or 4 – 16 volts
Dimensions - 60mm H x 222mm W x 444mm L
All will be connected for audition.
