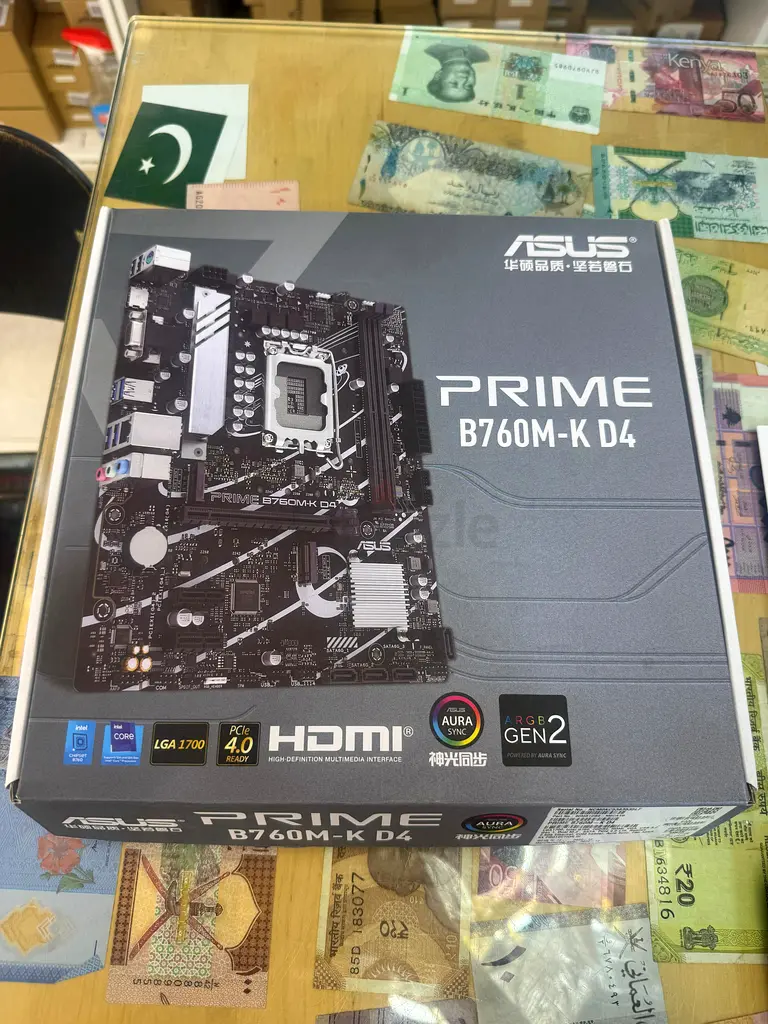

ASUS Prime B760M-K D4, an Intel B760 LGA 1700 mATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots

Name: ASUS Prime B760M-K D4, an Intel B760 LGA 1700 mATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots
Brand: ASUS
Price: 200 AED
Availability: InStock

AED 200

Al Friday

2 items live

Item Details

Brand

ASUS

Age

2-5 years

Condition

Almost no noticeable problems or flaws

Warranty

Does not apply

Model name

B760M - K D4

Usage

Used only a few times

Posted on: 15th May 2026

Description

IntelLGA 1700 Socket:Ready for 13thand 12thGen Intelprocessors
Ultrafast Connectivity:PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 support
Comprehensive Cooling:VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert
Aura Sync RGB Lighting:Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

CPU Support Intel® Socket LGA1700 for 14th, 13th & 12th Gen Intel® Core™ Processors*
Supports Intel® Turbo Boost Technology 2.0 & Turbo Boost Max Technology 3.0
Chipset Intel® B760 Chipset
Memory 2 x DIMM slots, Max. 64GB, DDR4
Supports up to 5333(OC) MHz Non-ECC, Un-buffered Memory
Dual Channel Architecture, Intel® Extreme Memory Profile (XMP)
Graphics 1 x HDMI® 2.1 (Supports 4K@60Hz)
1 x VGA port (D-Sub)
Expansion Slots Intel® Processors: 1 x PCIe 4.0 x16 slot
Intel® B760 Chipset: 2 x PCIe 4.0 x1 slots
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
- M.2_1 (CPU): PCIe 4.0 x4 mode (2242/2260/2280)
- M.2_2 (Chipset): PCIe 4.0 x4 mode (2242/2260/2280)
- 4 x SATA 6Gb/s ports (Supports RAID 0/1/5/10)
Ethernet 1 x Realtek 2.5Gb Ethernet
USB Rear: 4 x USB 3.2 Gen 1 (5G) Type-A, 2 x USB 2.0 Type-A
Front: 2 x USB 3.2 Gen 1 (via 1 header), 3 x USB 2.0 (via 2 headers)
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
- Audio Shielding, Premium capacitors, Dedicated PCB layers
- Supports up to 24-Bit/192 kHz playback
Back Panel I/O 4x USB 3.2 Gen 1, 2x USB 2.0, 1x HDMI, 1x VGA, 1x 2.5Gb Ethernet, 3x Audio jacks, 1x PS/2 Combo port
Special Features ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard), ASUS Q-Design (Q-LED Core, Q-DIMM, Q-Slot), VRM Heatsink, Aura Sync
Form Factor mATX Form Factor: 9.6 inch x 8.3 inch (24.4 cm x 21.1 cm)
Operating System Windows® 11, Windows® 10 64-bit
