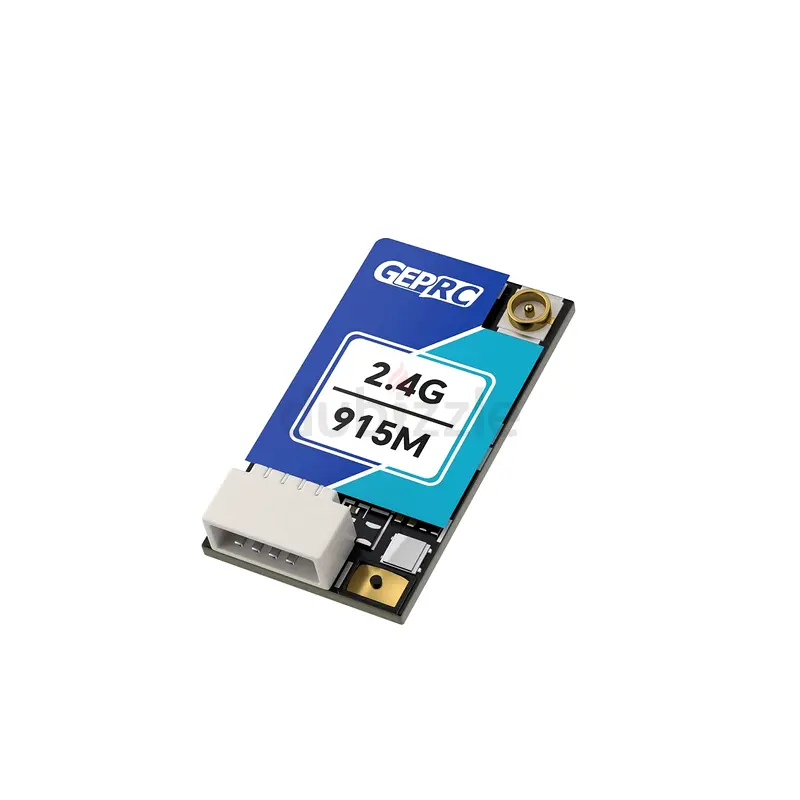

GEPRC ELRS Nano 915M/2.4G Dual-Band Receiver

Name: GEPRC ELRS Nano 915M/2.4G Dual-Band Receiver
Brand: Others
Price: 200 AED
Availability: InStock

AED 200

Falcon

4.8

76 items live

Item Details

Brand

Others

Age

Brand New

Condition

Perfect inside and out

Warranty

Yes

Usage

Still in original packaging

Posted on: 21st May 2026

Description

GEPRC ELRS Nano 915M/2.4G Dual-Band Receiver

Brand new , Original.

Summary
The GEPRC ELRS Nano 915M/2.4G Dual-Band Receiver is a new Dual-Band system developed from the ExpressLRS open-source project. It is designed based on Semtech’s third-generation LR1121 RF chip, supporting 150 – 960MHz (sub-GHz) and 2.4GHz bands for Dual-Band transmission.

The ELRS Nano 915M/2.4G Dual-Band Receiver features dual LR1121 chips, allowing easy switching between 915M , 2.4G when paired with 915M/2.4G antennas. It is fully compatible with existing 915M and 2.4G ELRS TX modules.

The TCXO temperature-compensated crystal oscillator ensures reliable performance across temperature variations, with telemetry power up to 100mW. The built-in WiFi antenna facilitates effortless firmware updates, and the SH1.0 connector simplifies installation.

Feature
Advanced ExpressLRS 915M/2.4G dual-frequency system
Based on Semtech’s third-generation LR1121 RF chip
Compact at 11.1×20.4×5.2mm and weighing just 0.95g
Supports 915M, 2.4G operating mode
Features a temperature-compensated crystal oscillator (TCXO) for stable performance in varying temperatures
TLM up to 100mW
Refresh rate up to 1000Hz
Supports WiFi firmware updates
Includes an SH1.0 connector for easy installation
Specifications
Model: GEPRC ELRS Nano 915M/2.4G Dual-Band Receiver
Dimension: 11.1×20.4×5.2mm
Weight: 0.95g (only receiver)
Chips: ESP32-C3, LR1121
Crystal Oscillator: TCXO
Frequency Bands: 915MHz(FCC),868MHz(EU),2.4GHz(ISM)
Refresh Rate: 25Hz-1000Hz
Operating Voltage: 5V
Antenna Connector: ipex1
TLM Power: 100mW
Firmware: GEPRC 900/2400 Single Dual-Band RX
Includes

1 x ELRS Nano 915M/2.4G Dual-Band Receiver

1 x 915M/2.4G dual-band T-antennas

1 x Heat shrink tube

1 x 4-pin silicone connect cable

1 x User manual
