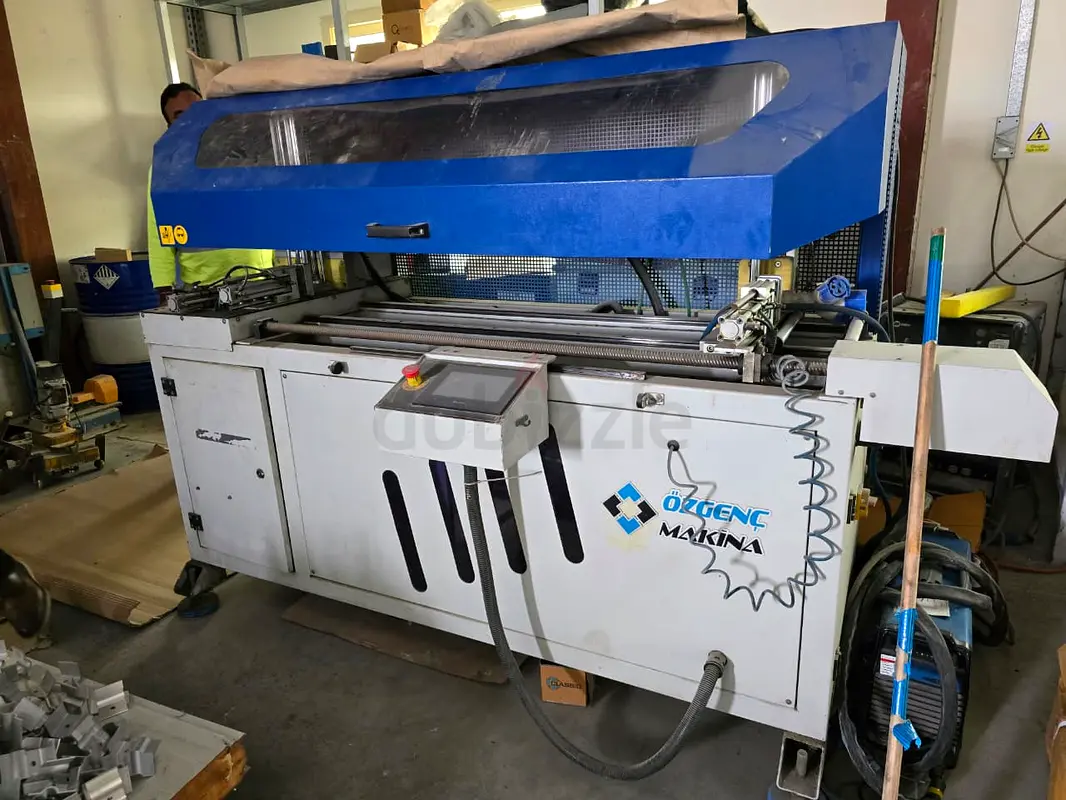

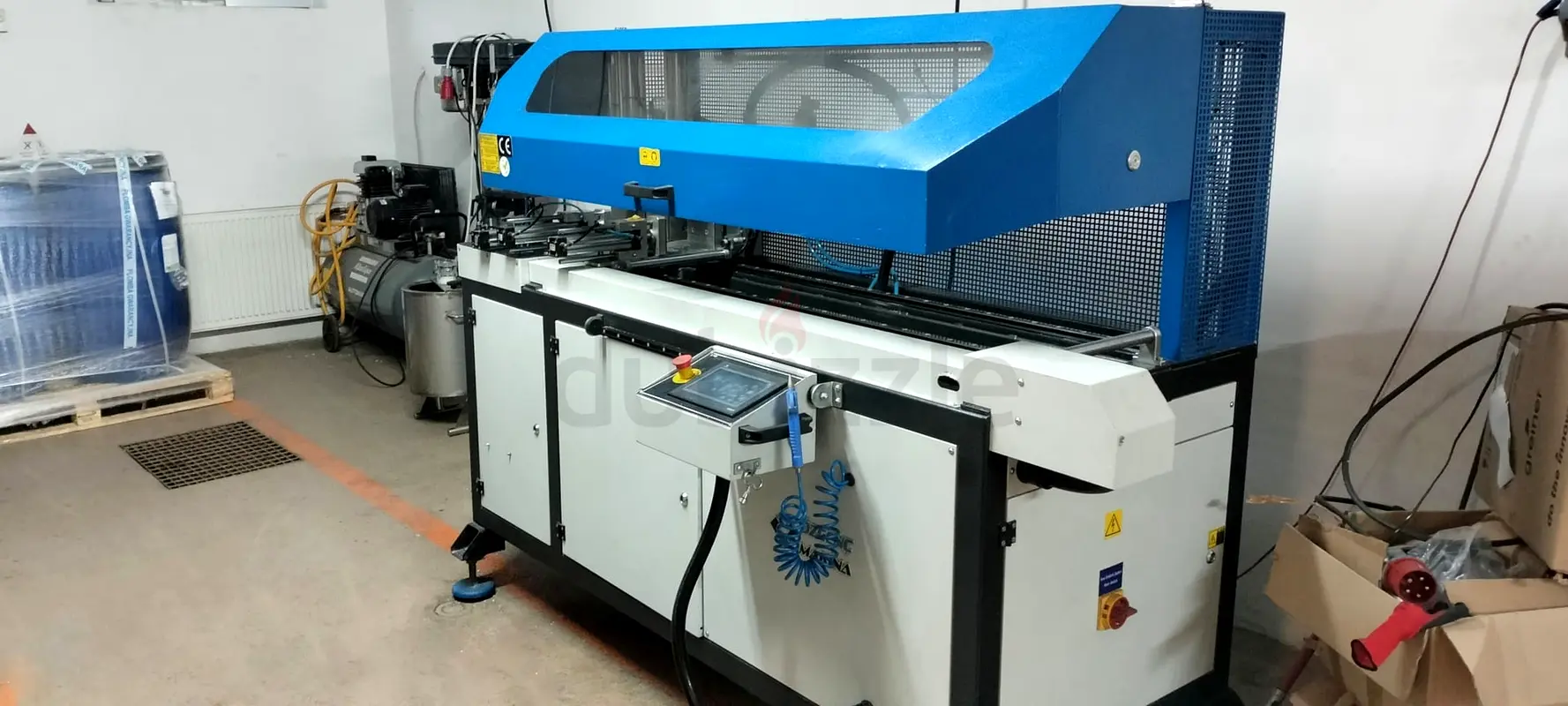

Automatic aluminium profile slicing machine

AED 48,000

Conor

5.0

2 items live

Item Details

Condition

A bit of wear and tear, but in good working condition

Usage

Used an average amount, as frequently as would be expected

Posted on: 7th May 2026

Description

Make / Manufacturer: Özgenç Makina
Model / Code: SL 500
Machine type: Automatic aluminium profile slicing machine
Intended use: Cutting aluminium wedge profiles

Automation features:
• PLC control system
• Two-head design: one fixed + one mobile
• Servo motor running system
• Clamping: 3 horizontal + 3 vertical pneumatic compression
• Automatic spray cooling
• Roller conveyor line: 3 m
• Automatic slicing + cutting list creation
• Cutting precision: ±0.1 mm
• Safety: protection cover system with safety key
• HMI: touchscreen

Technical specifications:

Electrical / power
• Operating voltage: 400 V
• Current: 32 A
• Power (used force): 6 kW
• Frequency: 50 Hz

Pneumatics
• Operating pressure: 6–8 bar
• Air consumption: 10 L/cycle

Motors
• Saw motor: 400 V, 5.5 kW, 3000 RPM
• Servo motor: AC 200 V, 750 W, 3000 RPM

Travel / capacity indicator
• Profile sliding distance: 1280 mm

Saw blade
• Saw type: round saw, Ø500 mm diamond tip
• Outside diameter: Ø500 mm
• Thickness: 4.2 / 3.4 mm
• Inner diameter (bore): Ø30 mm

Dimensions, footprint, and weight
• Overall dimensions (L × W × H): 5275 × 1125 × 1585 mm
• Machine weight: 665 kg

The machine is stored in DIP, available for viewing. Transport after sale will be the responsibility of the buyer.
