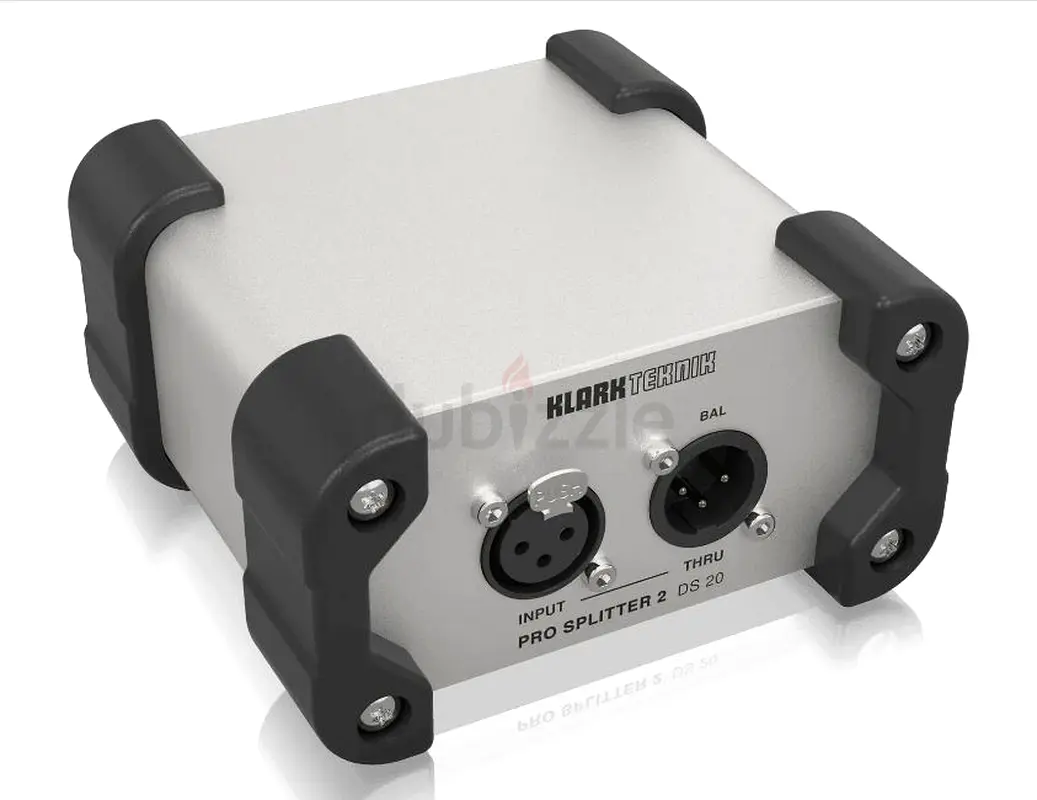

Klark Teknik DS 20 Passive 1-In/2-Out Signal Splitter with Midas Transformer - Brand New

درهم 210

BAvix

5.0

927 لديه إعلان

تفاصيل السلعة

العمر

جديد

الحالة

ممتازة من الداخل والخارج

مدى الإستخدام

لا يزال في التغليف الأصلي

تم النشر بتاريخ: 3 سبتمبر 2026

الوصف

KEY FEATURES

LINE LEVEL SPLITTER SENDS SINGLE INPUT SIGNAL TO 2 OUTPUTS

CUSTOM-BUILT MIDAS TRANSFORMER FOR HIGHEST SIGNAL INTEGRITY

HIGH HEADROOM DESIGN OFFERS SUPERIOR SOUND QUALITY

PASSIVE DESIGN DOES NOT REQUIRE ANY POWER SUPPLY

HIGH QUALITY NEUTRIK* XLR CONNECTORS

EARTH LIFT SWITCHES FOR EACH OUTPUT ELIMINATES GROUND LOOP PROBLEMS

FULLY TRANSFORMER-ISOLATED DESIGN ENSURES ELECTRICAL SEPARATION

ULTRA-LOW NOISE AND ULTRA-LINEAR SYSTEM FOR HIGHEST SIGNAL INTEGRITY

ALUMINIUM EXTRUSION CASING WITH PROTECTIVE RUBBER CORNERS

COMPACT AND RUGGED DESIGN

DESCRIPTION

Building on KLARK TEKNIK�s storied legacy of highest-quality signal processing devices, the DS 20 PRO SPLITTER 2 offers the same high headroom, dynamic response and sonic clarity you have come to expect. DS 20 is ideal for routing balanced XLR signals to multiple discrete destinations, including FOH and monitor consoles, active monitor loudspeakers, broadcast mixers, and more. A passive device, the DS 20 does not require any form of external power to complete its mission. Equipped with a custom-built MIDAS transformer, DS 20 is the perfect solution for a wide range of professional audio and multimedia applications.

SPECIFICATIONS

Audio Connections

INPUT 1 x XLR, balanced
INPUT IMPEDANCE 1.9 kΩ, balanced
THRU 1 x XLR, balanced
OUTPUT A/B 2 x XLR, balanced

System

FREQUENCY RESPONSE 30 Hz to 45 kHz, ±3 dB
DYNAMIC RANGE +124 dB
THD+N < 0.03 % @ 1 kHz, +4 dBu
S/N RATIO > 100 dB @ +4 dBu

Dimension / Weight

DIMENSIONS (W X D X H) 118 x 120 x 64 mm(4.6 x 4.7 x 2.5")
WEIGHT 0.6 kg (1.3 lbs)
