Luxman SQ-505X
درهم 4,780
تفاصيل السلعة
العمر
10 سنوات وأكثر
ضمان
نعم
الحالة
بدون مشاكل أو عيوب ملحوظة
مدى الإستخدام
تم الاستخدام مرات قليلة
تم النشر بتاريخ: 19 مايو 2026
الوصف
Visit www.hifi-gold.com to see more and pay online if you would like to have this delivered to you. All of our items come with a one month guarantee.

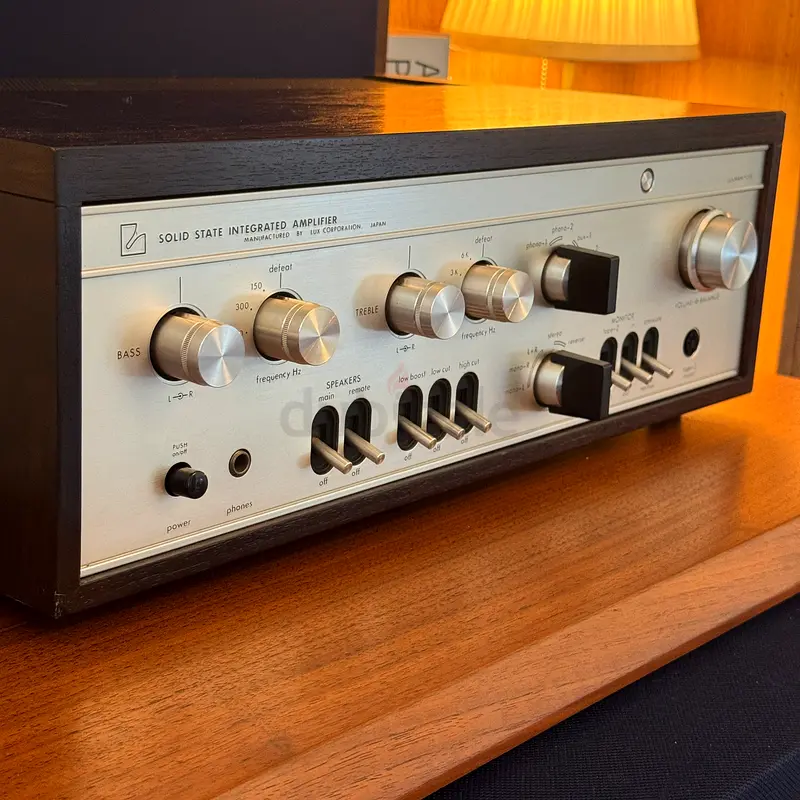

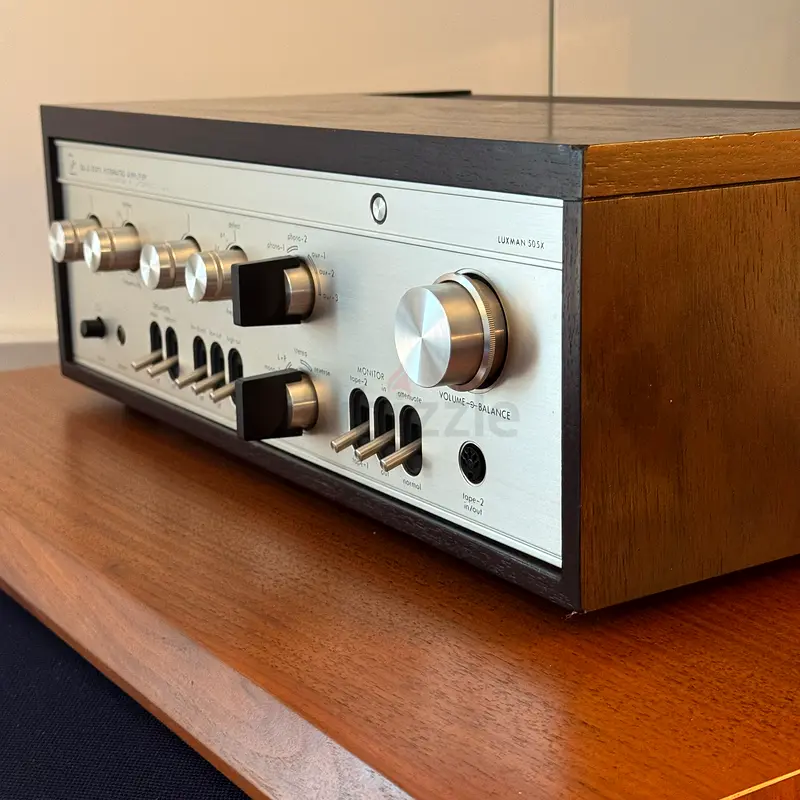

The Luxman SQ-505X is a premium vintage solid-state integrated stereo amplifier produced by the renowned Japanese manufacturer Luxman between 1971 and 1974. It is highly regarded for its warm, tube-like acoustic signature and elegant brushed-aluminum faceplate encased in a signature wooden cabinet.
Key Specifications
Power Output: 30 Watts RMS per channel into 8 ohms (both channels driven)
Total Harmonic Distortion (THD): Less than 0.04% at rated 30W output
Frequency Response: 10Hz to 60kHz (within \(-1\text{dB}\))
Damping Factor: 30 into 8 ohms
Input Sensitivity: 2mV (Phono 1 & 2), 80mV (Aux 1, 2, & 3)
Phono 1 Input Impedance: Selectable options of 30kΩ, 50kΩ, or 100kΩ
Signal-to-Noise Ratio (S/N): Better than 63dB (Phono), better than 80dB (Line)
Semiconductors: 31 transistors, 2 diodes, and 4 varistors
Dimensions: 450mm Wide \(\times \) 160mm High \(\times \) 268mm Deep
Weight: 10 kg (22 lbs)
Advanced Features & Controls
Lux Type NF Tone Controls: Features independent bass and treble adjustments equipped with selectable turnover frequency points (Bass: 150Hz/300Hz/600Hz; Treble: 1.5kHz/3kHz/6kHz).
Pre/Main Split: Includes rear jumper pins acting as a separator to let you safely run it exclusively as a dedicated preamplifier or power amplifier.
Audio Attenuator: Built-in \(-18\text{dB}\) muting switch for immediate volume reduction.
Dual Tape Monitoring: Dual input and output tape loops supporting direct deck-to-deck dubbing.
The Luxman SQ-505X is a premium vintage solid-state integrated stereo amplifier produced by the renowned Japanese manufacturer Luxman between 1971 and 1974. It is highly regarded for its warm, tube-like acoustic signature and elegant brushed-aluminum faceplate encased in a signature wooden cabinet.
Key Specifications
Power Output: 30 Watts RMS per channel into 8 ohms (both channels driven)
Total Harmonic Distortion (THD): Less than 0.04% at rated 30W output
Frequency Response: 10Hz to 60kHz (within \(-1\text{dB}\))
Damping Factor: 30 into 8 ohms
Input Sensitivity: 2mV (Phono 1 & 2), 80mV (Aux 1, 2, & 3)
Phono 1 Input Impedance: Selectable options of 30kΩ, 50kΩ, or 100kΩ
Signal-to-Noise Ratio (S/N): Better than 63dB (Phono), better than 80dB (Line)
Semiconductors: 31 transistors, 2 diodes, and 4 varistors
Dimensions: 450mm Wide \(\times \) 160mm High \(\times \) 268mm Deep
Weight: 10 kg (22 lbs)
Advanced Features & Controls
Lux Type NF Tone Controls: Features independent bass and treble adjustments equipped with selectable turnover frequency points (Bass: 150Hz/300Hz/600Hz; Treble: 1.5kHz/3kHz/6kHz).
Pre/Main Split: Includes rear jumper pins acting as a separator to let you safely run it exclusively as a dedicated preamplifier or power amplifier.
Audio Attenuator: Built-in \(-18\text{dB}\) muting switch for immediate volume reduction.
Dual Tape Monitoring: Dual input and output tape loops supporting direct deck-to-deck dubbing.
