USED CNC ROUTER — MODEL LR-1530
درهم 30,000
تفاصيل السلعة
الحالة
جيدة مع وجود تلف بسيط
مدى الإستخدام
تم الاستخدام باعتدال
تم النشر بتاريخ: 14 يوليو 2026
الوصف
USED CNC ROUTER — MODEL LR-1530
- Type: 3-axis flatbed CNC router with vacuum hold-down table
- Manufacturer: Shandong Cooshar Technology Co., Ltd (China)
- Model: LR-1530
- Ex-factory date: January 2023
Supplied via: Narex Ind. Tools & Equip-Trdg Co. LLC, Sharjah, UAE
FUNCTION
Used for cutting, routing, engraving, and nesting flat sheet materials — wood, MDF, plywood, acrylic, and similar panels. Common in furniture manufacturing, cabinetry, signage, and general panel processing for producing cut parts, profiles, and engraved designs from CAD/CAM files.
KEY FEATURES
- Working bed size: 1500 x 3000 mm (5ft x 10ft — standard full sheet size)
- Single-spindle head (no automatic tool changer)
- Vacuum hold-down table, divided into multiple independently controlled zones (valves labeled A-E) with vacuum pressure gauge — allows selective activation of zones under the workpiece for efficient clamping
- X/Y/Z axis gantry with cable drag chains for wiring management
- Rack-and-pinion drive on the X-axis
- Separate control cabinet with cooling fans
- Dust extraction port at the spindle head
SPECIFICATIONS
- Spindle/tool power: 5.5 kW
- Total installed power: 20 kW
- Voltage: 380V, 3-phase, 50Hz
- Work size: 1500 x 3000 mm
- Serial No.: KX20221020ZH-4
- Year: 2023 (approx. 3 years old)
CONDITION

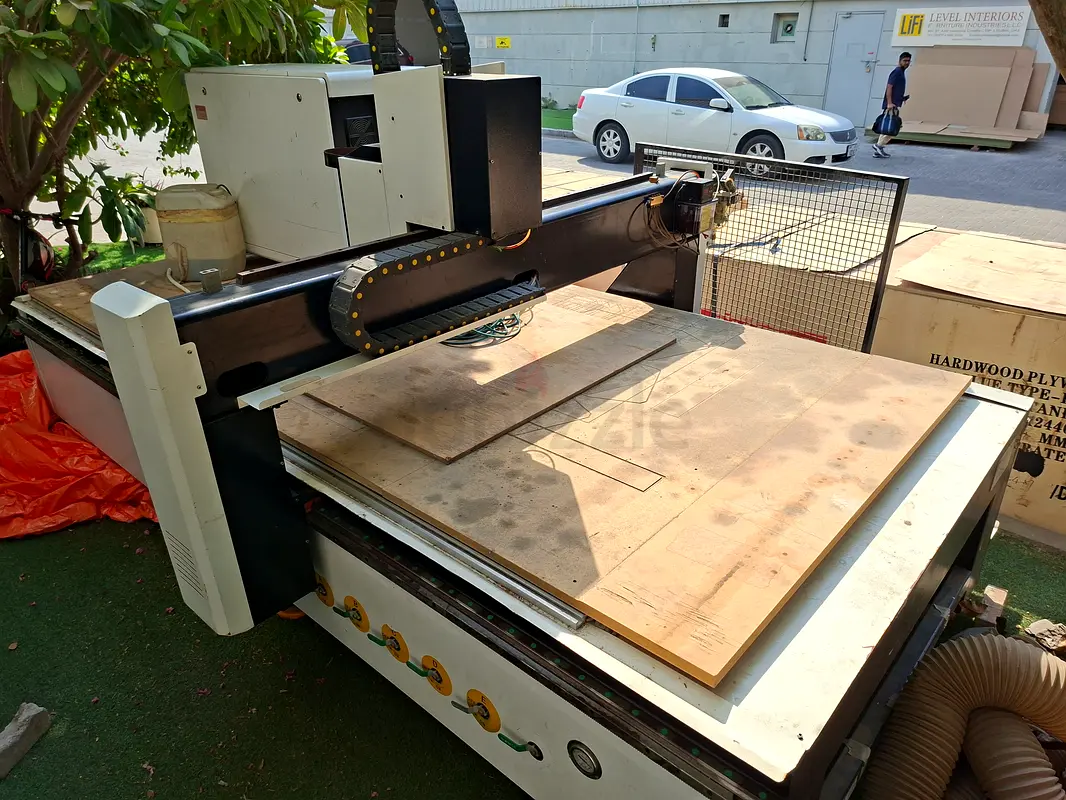

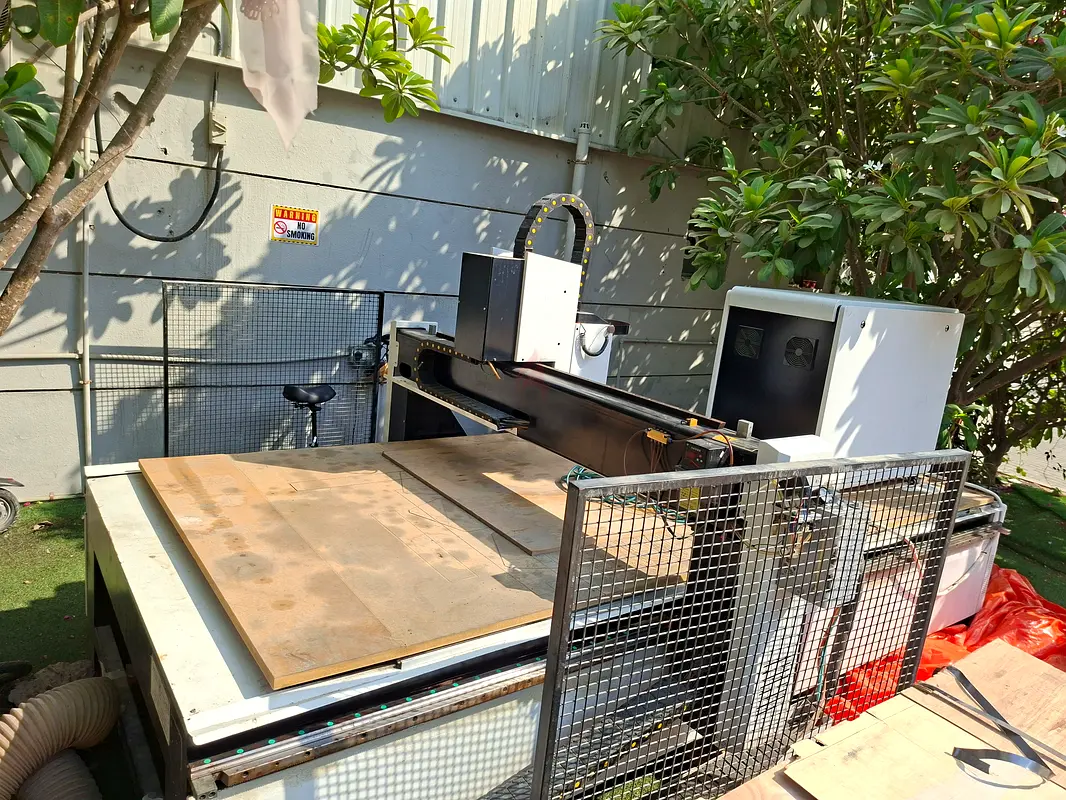

Used, functional condition. Machine has been stored outdoors and shows some surface rust on the X-axis rack gear rail, along with general wear from weather exposure. Core mechanical structure (gantry, spindle, vacuum table) appears intact with no major damage.
INCLUDED
- Main CNC router unit with vacuum table
- Control cabinet
- Type: 3-axis flatbed CNC router with vacuum hold-down table
- Manufacturer: Shandong Cooshar Technology Co., Ltd (China)
- Model: LR-1530
- Ex-factory date: January 2023
Supplied via: Narex Ind. Tools & Equip-Trdg Co. LLC, Sharjah, UAE
FUNCTION
Used for cutting, routing, engraving, and nesting flat sheet materials — wood, MDF, plywood, acrylic, and similar panels. Common in furniture manufacturing, cabinetry, signage, and general panel processing for producing cut parts, profiles, and engraved designs from CAD/CAM files.
KEY FEATURES
- Working bed size: 1500 x 3000 mm (5ft x 10ft — standard full sheet size)
- Single-spindle head (no automatic tool changer)
- Vacuum hold-down table, divided into multiple independently controlled zones (valves labeled A-E) with vacuum pressure gauge — allows selective activation of zones under the workpiece for efficient clamping
- X/Y/Z axis gantry with cable drag chains for wiring management
- Rack-and-pinion drive on the X-axis
- Separate control cabinet with cooling fans
- Dust extraction port at the spindle head
SPECIFICATIONS
- Spindle/tool power: 5.5 kW
- Total installed power: 20 kW
- Voltage: 380V, 3-phase, 50Hz
- Work size: 1500 x 3000 mm
- Serial No.: KX20221020ZH-4
- Year: 2023 (approx. 3 years old)
CONDITION
Used, functional condition. Machine has been stored outdoors and shows some surface rust on the X-axis rack gear rail, along with general wear from weather exposure. Core mechanical structure (gantry, spindle, vacuum table) appears intact with no major damage.
INCLUDED
- Main CNC router unit with vacuum table
- Control cabinet
